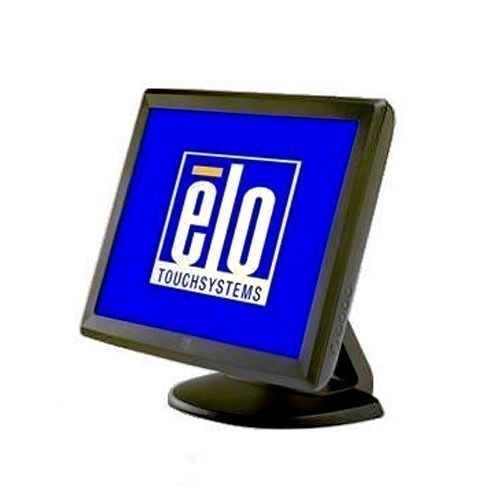

Elo Touchscreen 15" 1515L / 1915L

The Elo Touch Solutions 1515L / 1915L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into a integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit and includes a VESA mounting option. The optional 3-track magnetic stripe reader (MSR), is easily installed by the user, providing an elegant, integrated solution. The display is factory sealed against dirt and dust, and the unit offers a choice of touchscreen technologies: the anti-glare clarity and superior performance of IntelliTouch surface acoustic wave, time-tested AccuTouch five-wire resistive, and IntelliTouch Pro projected capacitive (PCAP) for a multi-touch experience and zero-bezel, seamless design.

The 1915L desktop LCD touchmonitor is available with a choice of Elo's AccuTouch five-wire resistive, or IntelliTouch surface wave touch technologies, plus a dual serial/ USB touch interface. The monitor is factory sealed against dust, dirt, and liquid splashes. The 1915L can be used in a wide variety of environments because it registers input from a finger, gloved hand or soft stylus with a fast and accurate response.

Specifications

Model	1515L
Form factor	Desktop
Enclosure color	Dark gray, beige
Diagonal size	15.0"
Aspect ratio	4:3
Useful screen area	Horizontal: 12.0" (304 mm)  Vertical: 9.0" (228 mm)
Monitor dimensions (with stand)	Width: 13.8" (350 mm) Height: 12.2" (310 mm) Depth: 6.9" (175 mm) Dimensions vary with stand position and options selected
Native (optimal) resolution	1024 x 768 at 60 Hz
Other supported resolutions	1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72 or 75 Hz 720 x 400 at 70 Hz 640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz  640 x 350 at 70 Hz
Colors	16.7 million
Brightness (typical)	LCD panel: 250 nits AccuTouch: 200 nits Acoustic Pulse Recognition: 225 nits IntelliTouch: 225 nits
Response time - total (typical)	14.2 msec
Viewing angle  (typical)	Horizontal: ±70° or 140° total Vertical: 55°/60° or 115° total
Contrast ratio (typical)	500:1
Input video format	Analog VGA
Input video signal connector	Mini D-Sub 15-Pin VGA type
Input frequency	Horizontal: 31.5-60.2 kHz Vertical: 56.3-75 Hz
Power supply	Internal AC, Optional external DC (power brick)
Input voltage	AC: 100-240 VAC, 50/60 Hz DC: +12VDC ±5%
Input connector	AC: IEC 60320 C6 DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Power consumption (typical)	30 W
Options	USB Magnetic Stripe Reader
Temperature	Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4°F to 140°F)
Humidity (noncondensing)	Operating: 20%-80% Storage: 10%-90%
Weight	Actual with stand: 10.6 lb (4.8 kg) Actual without stand: 7.3 lb (3.3 kg) Shipping with stand: 15.4 lb (7.0 kg)
Shipping box dimensions (W x D x H)	16.54" (420 mm) x 14.96" (380 mm) x 10.24" (260 mm)
Warranty	3 years
Optional product coverage	Advance Unit Replacement program (North America only)
Backlight lamp life	Typical 30,000 hours to half brightness
MTBF	50,000 hours demonstrated
Agency approvals	North America/Worldwide: UL, cUL ,FCC, CE, Semko or Demko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark., BSMI, CCC, MIC, China RoHS
On-screen display (OSD)	Controls (side): menu, up, down, select, power Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls
Stand options	Removable
Mounting options	75 mm VESA mount Threaded-through mounting holes, under stand
Sealing	Touchscreen sealed to bezel Touchscreen sealed to LCD
Other features	Security lock receptacle
