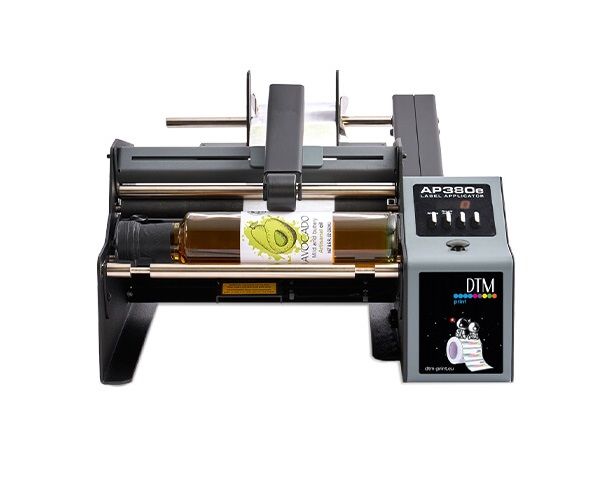

DTM AP380e Label Applicator, 1500 containers, 142 mm/s, LED Display
Product code :
074192DTM
Warranty :
12 Months
- التوفر: لا يوجد مخزون
- اطلب من قبل15:30 PM للتسليم في يوم العمل التالي!
- توصيل سريع!
- خيارات دفع شاملة!
$1837.50
$1837.50
The DTM AP380e is an automatic label applicator designed for high-speed and accurate labeling in various industrial and commercial applications. Typically used in packaging, manufacturing, and logistics, this type of equipment allows for the precise application of Labels to products, packages, or containers. It can handle a wide range of label sizes and types.
Specifications AP380e Label Applicator
| Number of Labels Dispensed per Trigger | 1 or 2 - front and back |
| Speed: | 142 mm/s or up to 1500 containers per hour |
| Container Shape: | Cylindrical and many tapered |
| Container Diameter: | 15 - 170 mm (0.6" - 6.7") |
| Container Width: | 25.4 - 238 mm (1" - 9.4") |
| Container Height: | 15 - 170 mm (0.6 - 6.7") |
| Label Width: | 19 - 209 mm (0.75" - 8.25") |
| Label Height: | 19 - 609.6 mm (0.75 - 24") |
| Supply Roll: | up to 203 mm (8") OD with a 50.8 mm to 76.2 mm (2" to 3") ID wound out, die-cut |
| Sensor Type: | Mechanical Sensor |
| Indicator Lights: | LED Display with Built-in Up/Down Counter and Saved Jobs |
| Controls: | Footswitch, Push Button, Mode, Recall/Reset, Up, Down |
| Power Requirements: | 100-240 V AC (50/60 Hz), 12 V DC, 5.0 A |
| Certifications: | UL, UL-C, CE, FCC Class A, RoHS |
| Weight: | 9.07 kg |
| Dimensions (WxHxD): | 340 x 226 x 508 mm |
| Gap between Labels: | Recommended: 3 - 6 mm |
| Label Type: | Die cut with or without waste removed. |
| Liner Thickness: | 50,8 - 254 µm (smoothness will affect feeding - a liner that is too slippery or too thin will slip through the drive rollers) |
| Label + Adhesive Thickness: | 127 - 381 µm |
| Wind Direction: | Wound out - See Label Copy Position Chart below (position 3 or 4 for most containers) |
| What’s in the Box: | AP380e Label Applicator, instructions, universal power supply |
| Warranty: | 36 months (after product registration, for devices purchased in EU/EFTA countries and UK) |
| Manufacturer: | DTM Print GmbH |
| Warranty | 12 Months |
|---|---|
| Manufacturer | Primera |
